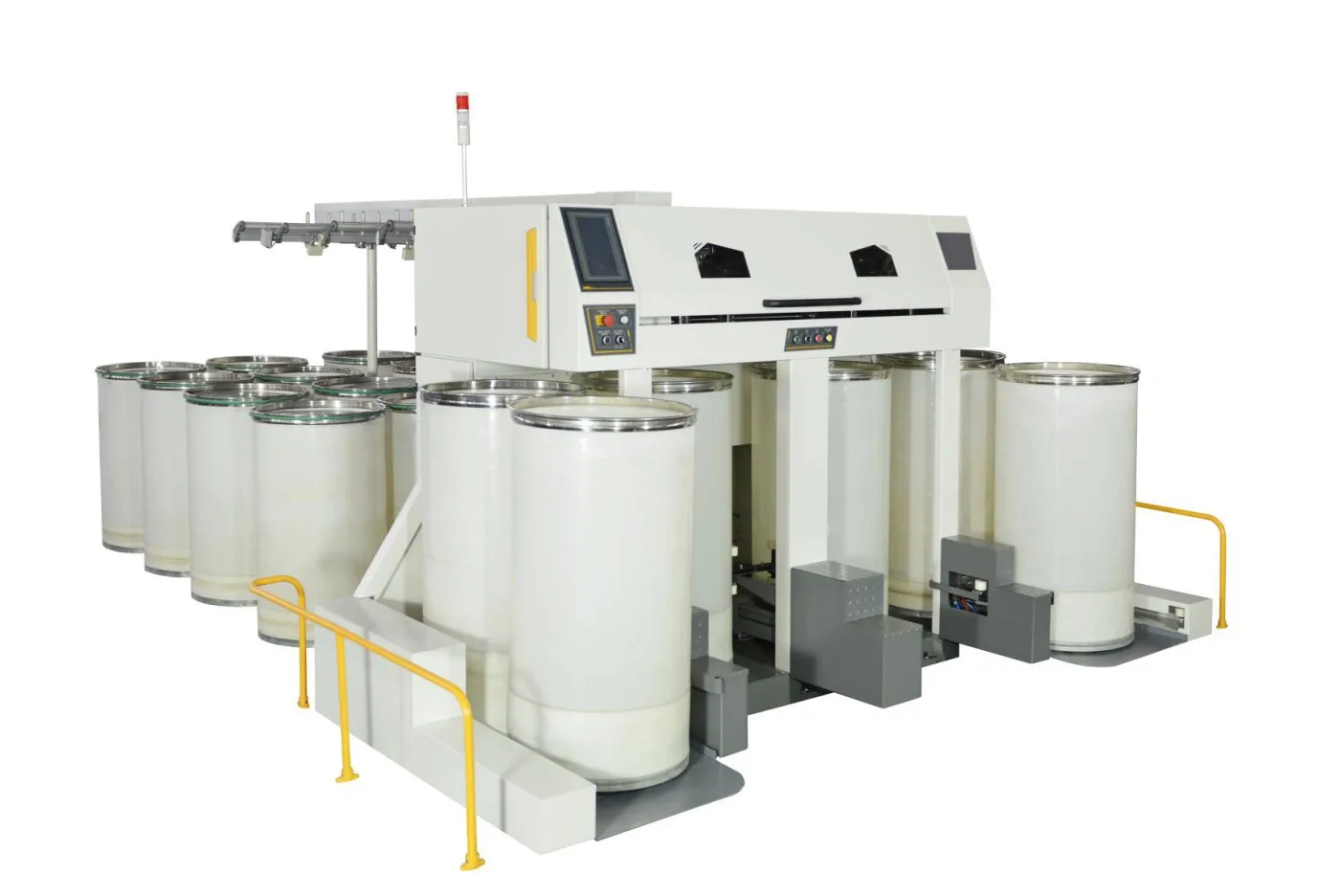

GP4918S DRAWING FRAME
SALIENT FEATURES:
1. using three on three under the guidance of the roller pressure bar with two-zone curve draft.
2. The new design with the taper of the roller has been national patent protection, can effectively extend the fueling cycle, to prevent oil pollution, conducive to heat.
3. The new design of the automatic head, the operation more convenient, Roller bearing oil storage device, can effectively extend the fueling cycle, reducing the workload of the refueling.

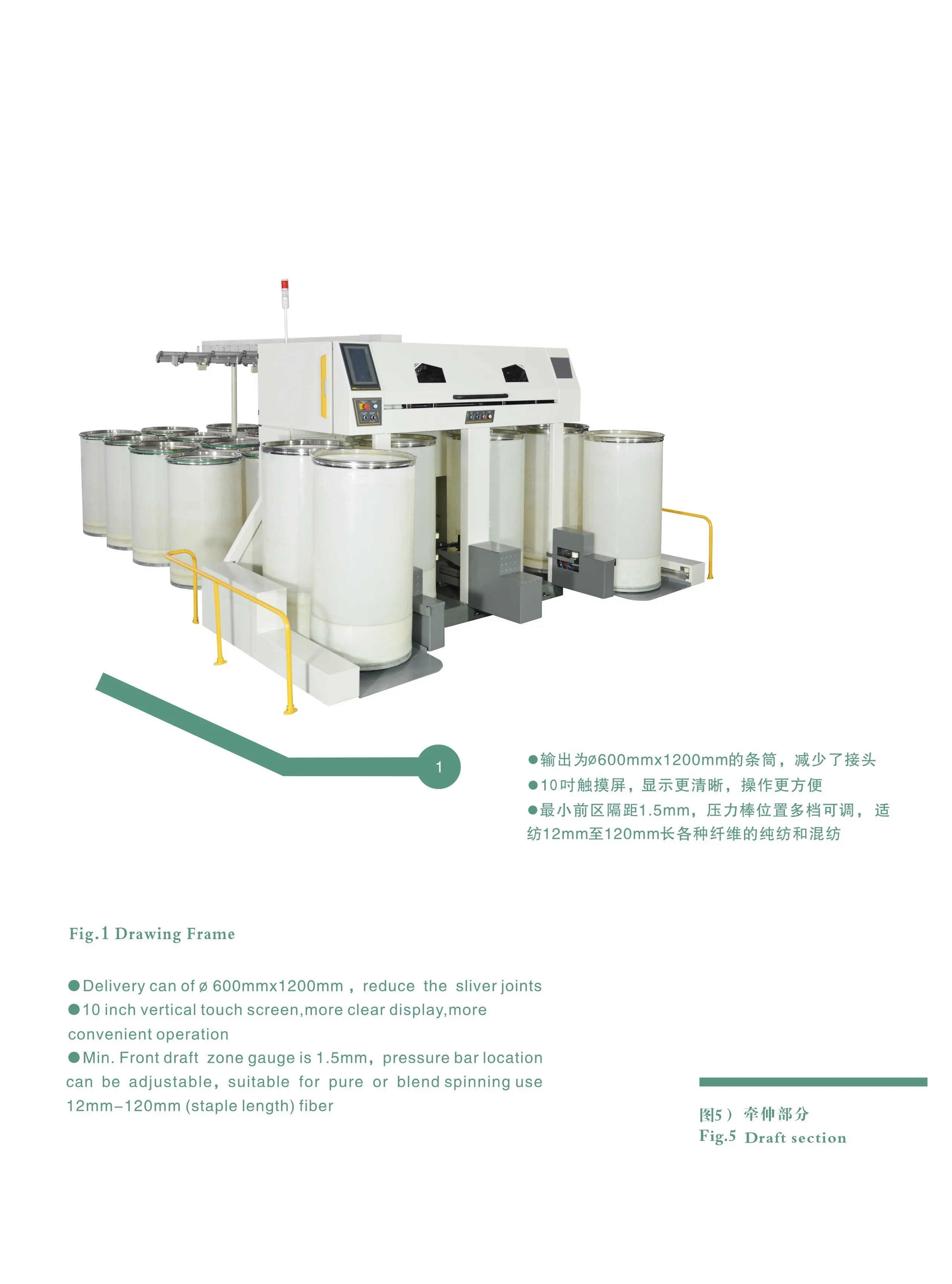

4. Multi-cylinder and the output is Φ600mm × Φ1200mm cans of the application, reducing the joints, to improve the workers stand rate.
Adjustment section
Maturity of the uneven weight of digital adjustment function, adjust the weight of the touch screen on the article and the operation of the branch.

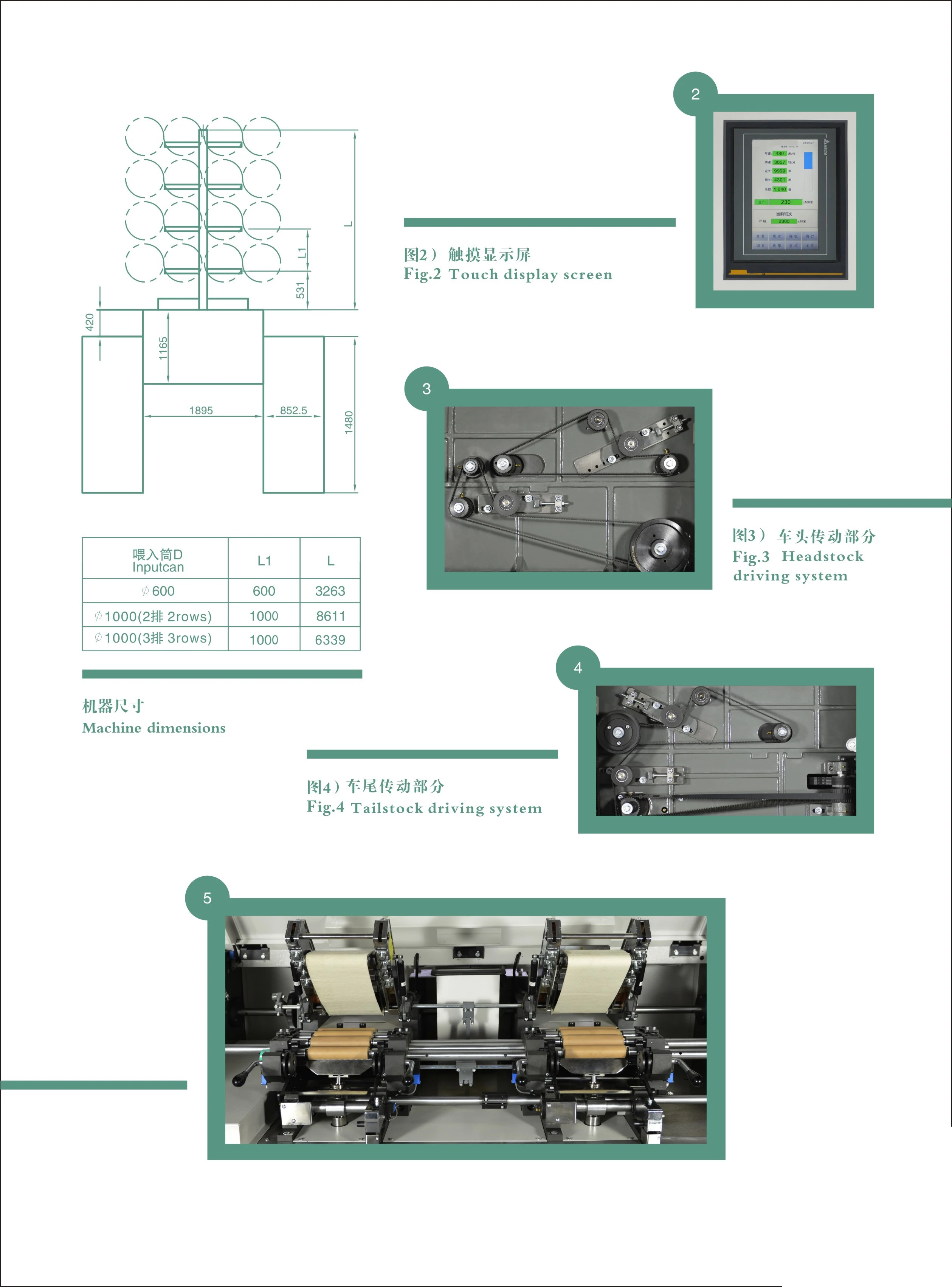

Minimum pre-section gauge 1.5 mm, pressure bar position adjustable, suitable for spinning 12 to 76 mm long Pure fibers and blends of various fibers.
Four tension can achieve multi-level adjustment, spinning performance is strong, drawing process wheel with no-key connection,easy to replace and play an overload protection.
Application of frequency control technology, the touch screen can adjust the operation speed.
Pressurized part
Cradle structure, durable, stable pressure, gas spring support, easy to operate, the pressure can be adjusted Leather roller with the cradle ups and downs, greatly facilitate the operation.
Transmission part
Widely used synchronous belt drive, transmission line is short, simple and efficient transmission structure, and the traditional gear drive drawer compared to 20% power, low noise, high speed, easy maintenance.
The new design of the timing belt constant tension control device to ensure the stability of the belt tension and stability, to extend the life of the belt.
The upper and lower ring of the oil refueling point for centralized oil supply, more convenient for internal lubrication points for fuel.
The upper and lower ring of the oil refueling point for centralized oil supply, more convenient for internal lubrication points for fuel.
Change tube part
The use of compressed air as the driving force of the cross-push straight automatic cylinder, through the programmable controller to complete the continuous and reliable automatic cylinder.
The new design of the cylinder limit device, effectively prevent the cans running out of normal position
Unique electronic fault of the patented technology, effectively guarantee the automatic cylinder for the continuous.
The new design of the multi-cylinder institutions, each eye can be equipped with multiple empty barrels involved in automatic change tube, greatly reducing the labor intensity and improve production efficiency.
The new design of the cylinder limit device, effectively prevent the cans running out of normal position
Unique electronic fault of the patented technology, effectively guarantee the automatic cylinder for the continuous.
The new design of the multi-cylinder institutions, each eye can be equipped with multiple empty barrels involved in automatic change tube, greatly reducing the labor intensity and improve production efficiency.
Electrical parts
The use of programmable logic controller, servo drive, touch screen display, frequency control technology, set aside the central network interface, can achieve fault remote diagnosis.
Guide bar section
Using aluminum alloy overhead guide, flat belt drive; or with a positive roller feed roller, belt drive there are no restrictions on the size of the feeding cans.
