High Production Textile Carding Machine for Cotton Polyester Fiber Waste Cotton for Ring Spinning & Open End Production Line
(0
reviews)
Share
Top Selling Products
Reviews & Ratings
0.00
out of 5.0
(0
reviews)
There have been no reviews for this product yet.

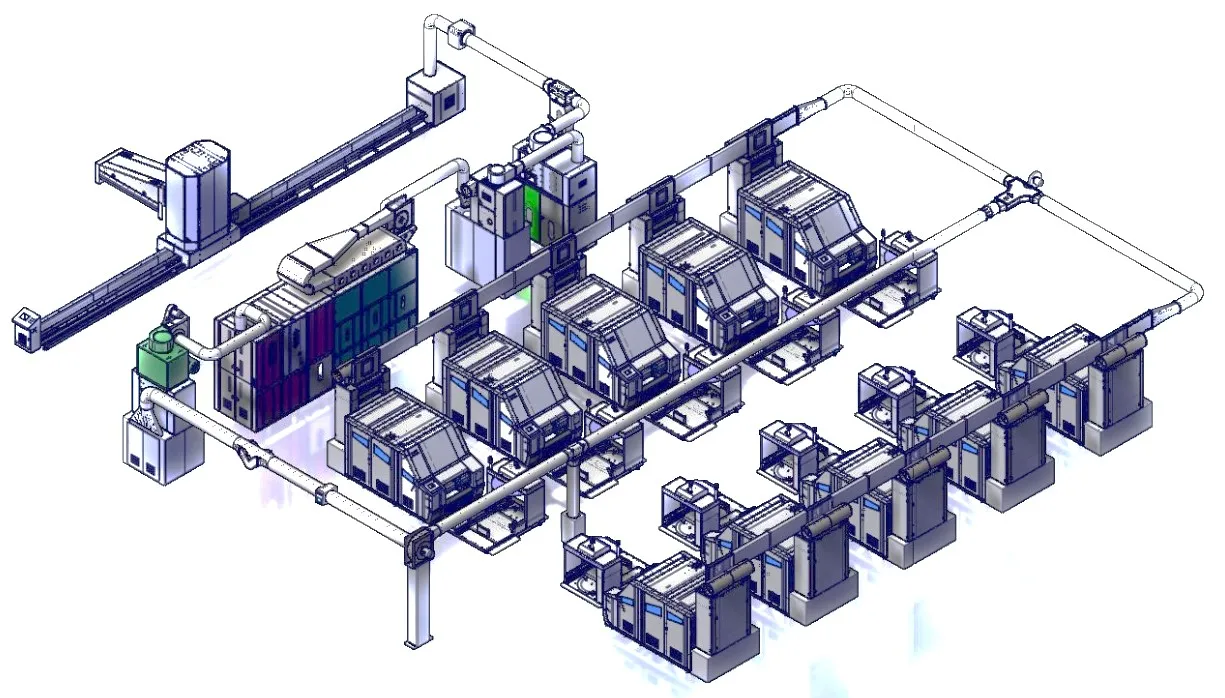

Solution specialist for complete pre-spinning equipment
1. Application
The machine unit is placed between blow room and draw frames and suitable for cotton fiber, cotton- type fiber, medium and long fiber. It will further open and card the loose cotton processed in the blow room line,
and remove neps, impurities and short fibers, then maker the crimp fibers into straight single fiber status, and concentrate the fibers into uniform sliver. The high speed coiler then will fill the can with the sliver to supply the after process. This carding machine unit is the ideal equipment to use in the blow room carding system.
Highlights
*Raised cylinder
Extended arc length in order to enhance carding and ensure outstanding quality.
Extended arc length in order to enhance carding and ensure outstanding quality.
*Widened machine
Machine width of 1.28 m and a carding surface up to 3.61 m² ensure higher yield and saves production costs, labour costs and energy.
Machine width of 1.28 m and a carding surface up to 3.61 m² ensure higher yield and saves production costs, labour costs and energy.

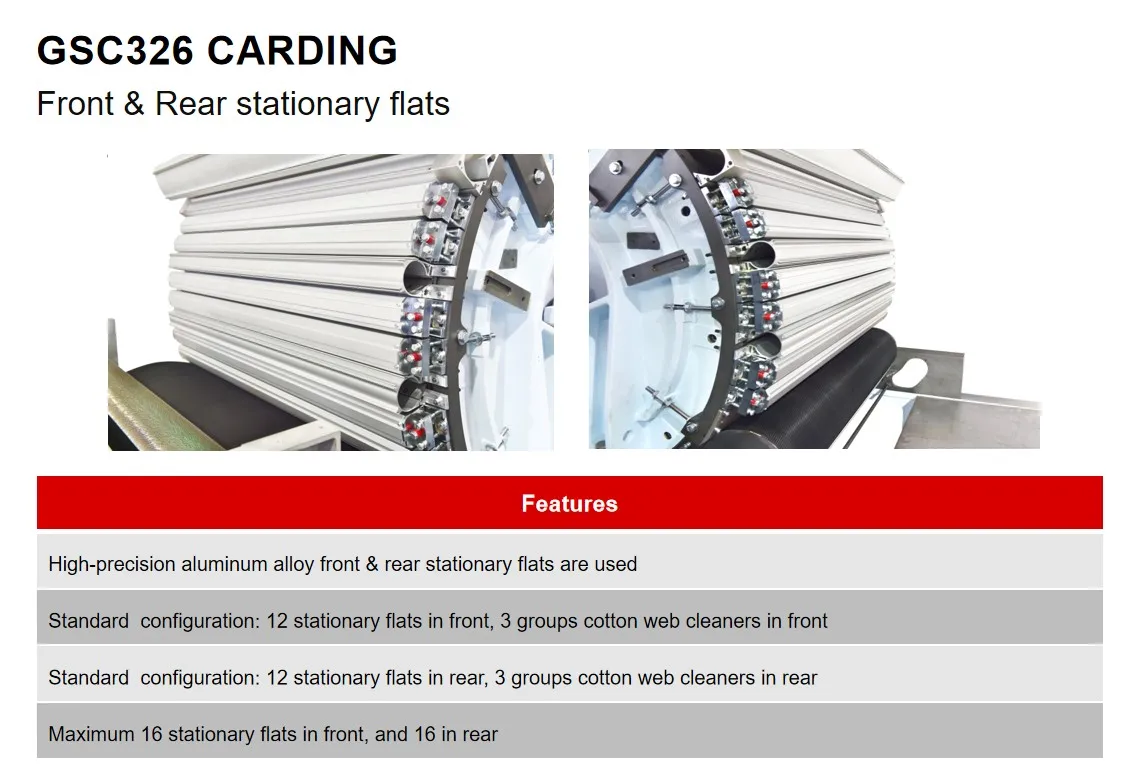

* Optimised carding elements
Aluminum alloy revolving flats driven by independent invertor controlling motors.

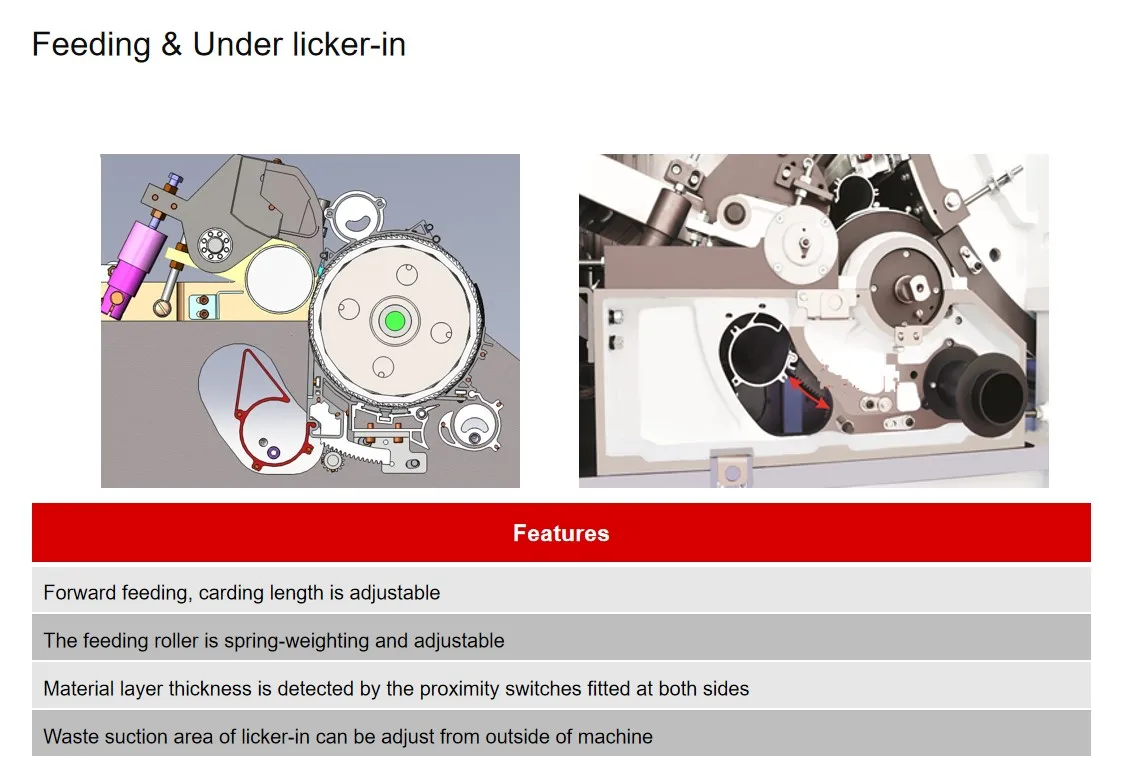

* Length of licker-in dust dropping area can be adjusted from the outside
Makes the machine more flexible and to meet the needs of different fibres and quality requirements.
* Electric control system
Industrial human-computer interface, with interworking PLC and auto-levelling system makes for accurate motion controlling.Multiple protection settings are possible.

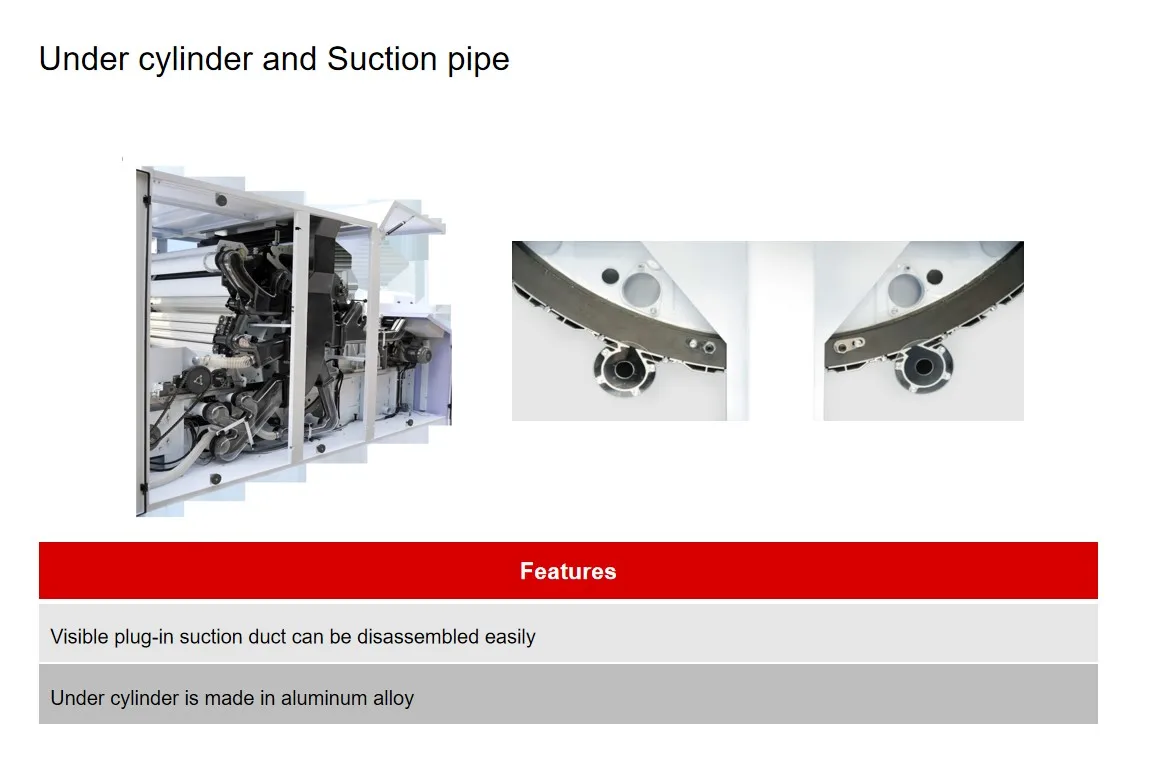

* Optimised air flow design
Transparent and smooth plastic filter pipe that is easy to maintain, with multi-spots continuous suction, continuous pressure monitoring and excellent dust suction effect.
Aluminum alloy revolving flats driven by independent invertor controlling motors.
* Length of licker-in dust dropping area can be adjusted from the outside
Makes the machine more flexible and to meet the needs of different fibres and quality requirements.
* Electric control system
Industrial human-computer interface, with interworking PLC and auto-levelling system makes for accurate motion controlling.Multiple protection settings are possible.
* Optimised air flow design
Transparent and smooth plastic filter pipe that is easy to maintain, with multi-spots continuous suction, continuous pressure monitoring and excellent dust suction effect.

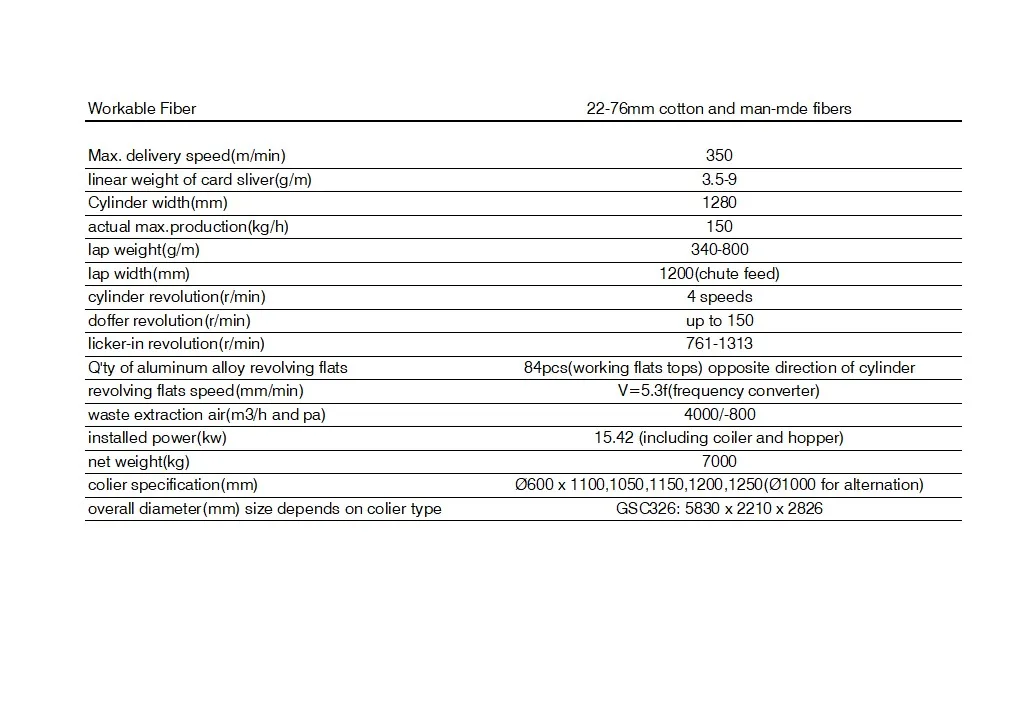

2. Main Features
